Mouseover / Tap the feature to view more information

Traction

Maxxis Ikon 27.5″ x 2.2″ tyres.

Bright

Integrated headlight and taillight run off the main battery.

Gears

Shimano. 11-32T on rear cassette, 42T chainring on front.

Comfort

Our sprung memory foam saddle is kind on your bum.

Motor

Bafang Max Drive motor with 80nm of torque. Highly rated by Consumer Reports NZ.

Battery

Internally concealed, removable & lockable 630 watt-hour battery with Samsung or LG cells.

Power

Thumb throttle gives you a full burst of power when you need it. (From 6km/hr)

Safety

Tektro dual-piston hydraulic brakes with built-in electric cut-off sensors for safety and 180mm rotors.

Suspension

RST Omega or Suntour XCT with 100mm travel.

Mudguards

Unlike many other brands, mudguards, lights and carrier come standard on MeloYelo bikes.

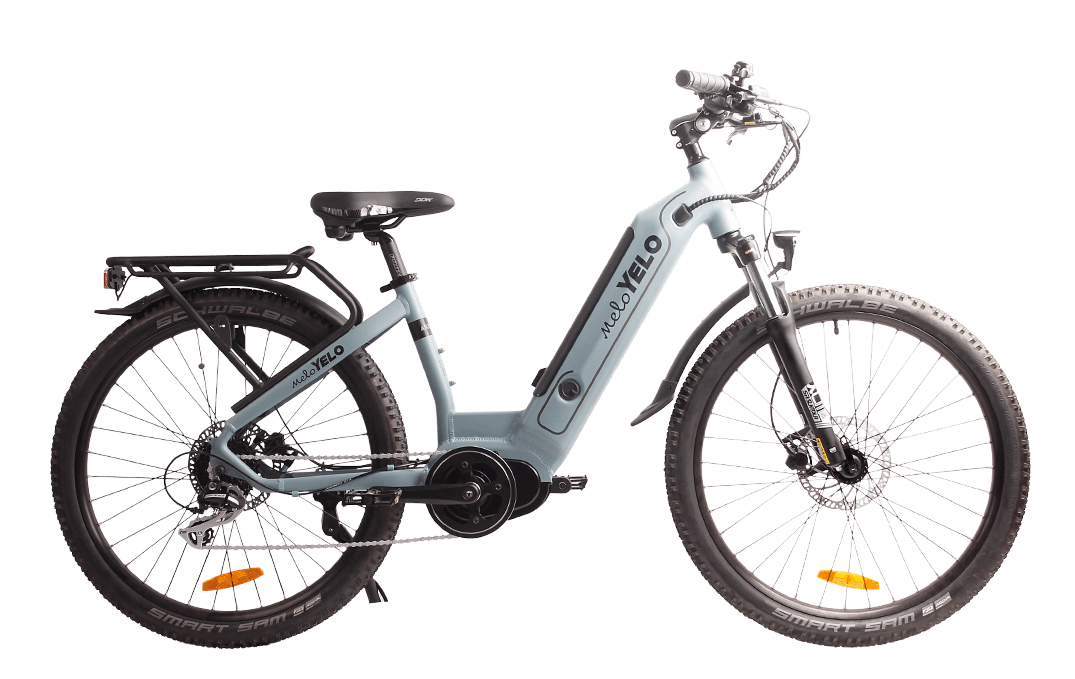

Ascent MD (Mid-drive) Electric Mountain Bike

Name: Ascent MD (Mid-drive) Electric Mountain Bike
Availability: InStock

FRAME SIZES

SPECS

BOOK A TEST RIDE

FIND AN AGENT

WHICH MELOYELO IS RIGHT FOR YOU?

GOOGLE REVIEWS

Product Description

Motor	Bafang M400 Max Drive motor, 80nm of torque. Highly rated by Consumer Reports NZ.
Battery	Samsung or LG 630 watt-hour (compare to others at 500 watt-hour)
Charger	ST brand 3Amp CE/UL certified (more reliable than the commonly used SANS charger)
Charge time	Approx. 4 hours
Throttle	Thumb throttle that can deliver full power once you've reached 6km/hour
Estimated Range	45-90km.
Display	Bafang LCD
Drive Mode	Bafang pedal assist speed sensor + pedal assist torque sensor
Top Speed	Not limited. Adjustable in display
Total Weight	26-27kg depending on frame size. Includes easily-removed battery, carrier, stand, lights
Frame	6061 Aluminium Alloy
Fork	Suntour XCM with 100mm travel and lockout
Gearing	8 speed Shimano, 11-32 tooth freewheel cluster
Shift	Shimano Acera, rapid fire
Cranks	42 tooth chainring, 170mm Prowheel crank arms
Gear sensor	Yes. Protects your drivetrain from excessive power while shifting gears.
Headset	Neco, Sealed Bearing
Stem	Adjustable stem
Handlebar	Aluminum Alloy
Brake	Tektro hydraulic with 180mm rotors
Levers	Tektro levers and motor inhibitor
Grips	Lock-on, comfortable rubber grips
Saddle	Sprung memory foam for the ultimate in comfort
Colours	Moody blue or Teal
Tyres	Maxxis Ikon, puncture resistant trail tyres
Kickstand	Massload kickstand
Lights	Yes
Mudguards	Yes
Rear carry rack	Yes
Warranty	3 years*

$4,595.00

Description
Additional
information

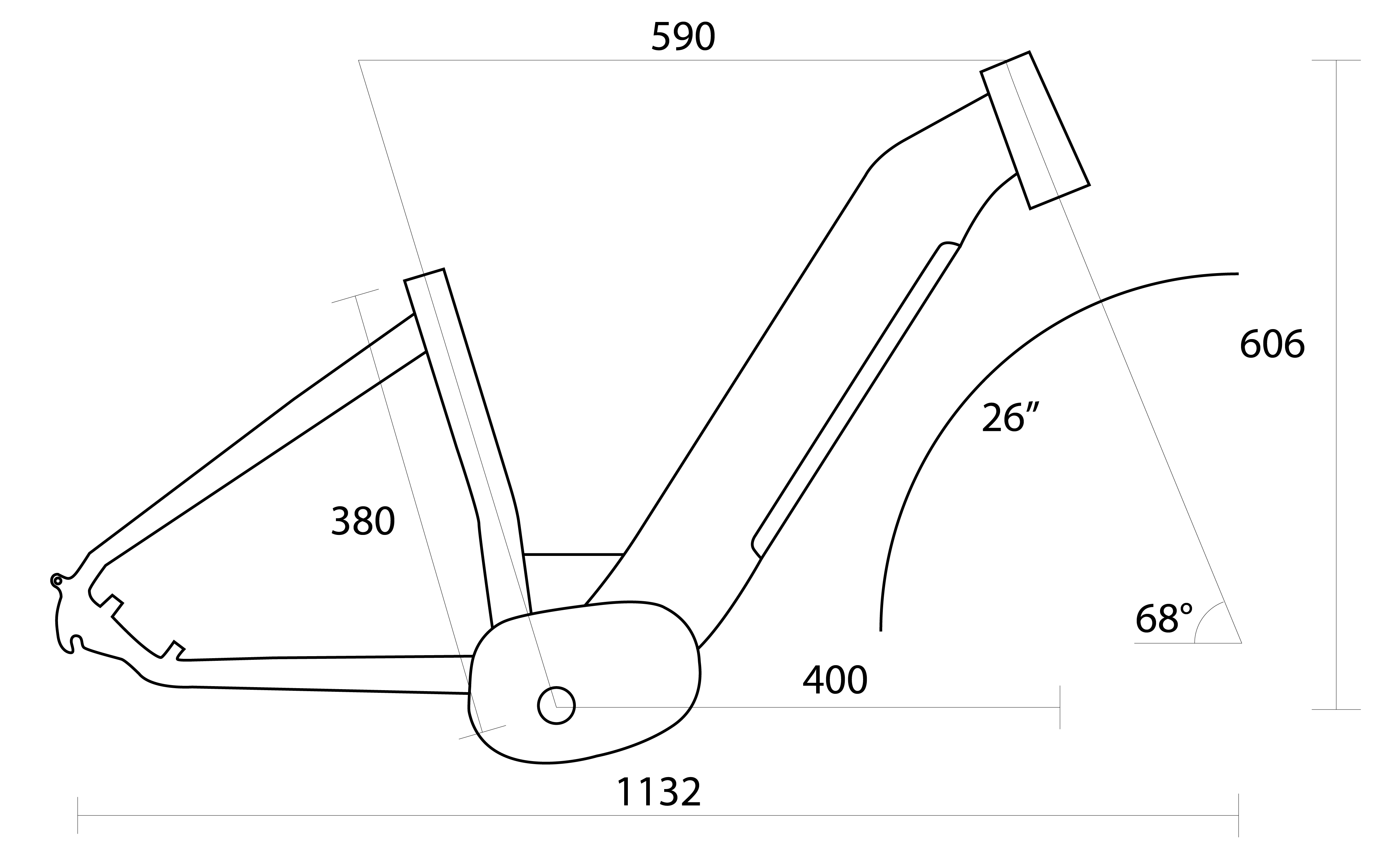

FRAME SIZE OPTIONS: Small: Large

Slide

	Small	Large
Min seat height	750	840
Step through Height	440	450
Max Rider Weight	110kg	110kg
Max Carrier Capacity	25kg	25kg
Bike Weight	26kg	26kg
Wheel Size	26″	27.5″
Disc Rotor	180	180
Wheel base	1132	1191
Total Length	1792	1889
Top Tube	590	640
Seat tube	380	460
Reach	400	450
Stack	606	606

SPECIFICATIONS
